Silicone rubber heater

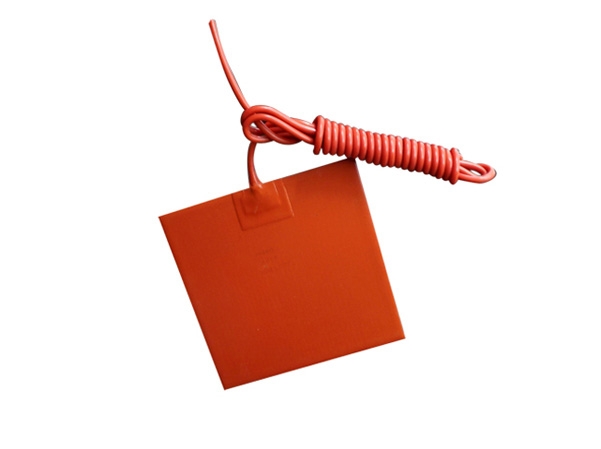

Silicone Electric Heater

sort:XD-H-12
This product has been viewed
Sort:XD-H-12
Welcome to call us
alirubber.com@163.com
Product Details

Temperature Rating

400°F(204°C)maximum operating

Size/Shape Limitations

Maximum width of 48 inches, no maximum length

Thickness

~0.06 inch(Single-Ply)~0.12 inch(Dual-Ply)

Voltage

Any AC or DC

Wattage

Customer specified(Normal maximum of 5 watts of 5 watts per square inch)

Power lead wire

Silicone rubber, SJ Power Cord, or Teflon insulated stranded wire

Attachment

Hooks, lacing eyelets, Or Velcro closure. Temperature control(Thermostat)

Description

1. Silicon Rubber Heating Pad/Sheet has advantages of thinness, lightness, sticky and flexibility.

2. It can improve heat transfer, accelerate warming and decrease power under the process of operation.

3. They are heating fast and thermal conversion efficiency high.

Features:

(1) Heating fast and long time using

(2) Flexible and customization

(3) Waterproof and non-toxic(Waterproof grad:IP68)

Before purchasing, Please confirm the size first ( Iength*wide*thickness)


Silicone Heater Heating Element

Silicone rubber heater can be made with etched foil heating elements or wire wound heating elements.


a)Etched Foil Silicone Rubber Heaters

The etched element provides superior heat transfer and exceptionally uniform heat output, which results in a faster warm-up cycle and longer life. The heaters operate in ambient temperatures from -80°F to 500°F.

etched foil silicone rubber heaters

Advantages over wire wound silicone rubber heaters:

  • Higher watt densities
  • Distributed wattages
  • Elimination of edge loss compensation
  • Greater element area over heater sheath
  • Complex heat distribution with a rating of about 200°C (392°F)
  • Economical mass production
  • Reproduction of complex circuits

b)Wire Wound Silicone Rubber Heaters

The excellent dielectric properties of silicone rubber and the strength of fiberglass combine to produce a unique heater. First, fine nickel-chromium alloy wire is spiraled onto a center core of fiberglass twine, producing a strong, flexible heating element.  Electronically-controlled precision winding equipment ensures consistency.

Circuits are then hand-wound on permanent tooling providing repeatability of resistance and pattern. Parallel circuits are utilized where possible, permitting continued operation should a single circuit be damaged.

When the heating element is positioned, a second layer of silicone rubber is laid over the wire. The layers are then vulcanized to permanently position the circuits.

Using these versatile and flexible heaters, the ability to apply heat exactly where required is limited only by imagination — and a maximum continuous operating temperature of about 200°C
