Silicone rubber heater

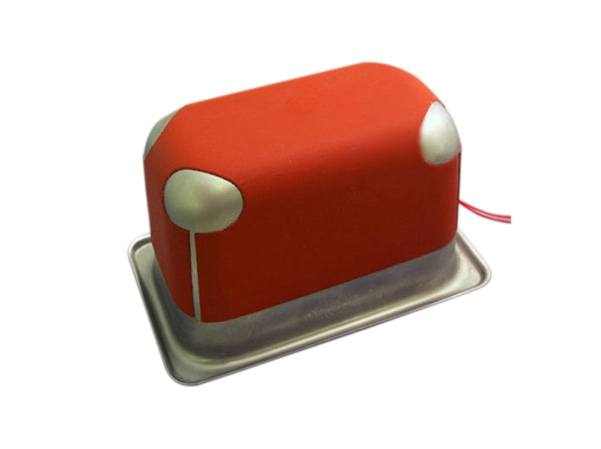

Silicone Heater For Water Tank
sort：This product has been viewed
Sort：
Welcome to call us
alirubber.com@163.com
a)Etched Foil Silicone Rubber Heaters
The etched element provides superior heat transfer and exceptionally uniform heat output, which results in a faster warm-up cycle and longer life. The heaters operate in ambient temperatures from -80°F to 500°F.
Advantages over wire wound silicone rubber heaters:
- Higher watt densities
- Distributed wattages
- Elimination of edge loss compensation
- Greater element area over heater sheath
- Complex heat distribution with a rating of about 200°C (392°F)
- Economical mass production
- Reproduction of complex circuits
b)Wire Wound Silicone Rubber Heaters
The excellent dielectric properties of silicone rubber and the strength of fiberglass combine to produce a unique heater. First, fine nickel-chromium alloy wire is spiraled onto a center core of fiberglass twine, producing a strong, flexible heating element. Electronically-controlled precision winding equipment ensures consistency.
Circuits are then hand-wound on permanent tooling providing repeatability of resistance and pattern. Parallel circuits are utilized where possible, permitting continued operation should a single circuit be damaged.
When the heating element is positioned, a second layer of silicone rubber is laid over the wire. The layers are then vulcanized to permanently position the circuits.
Using these versatile and flexible heaters, the ability to apply heat exactly where required is limited only by imagination — and a maximum continuous operating temperature of about 200°C
