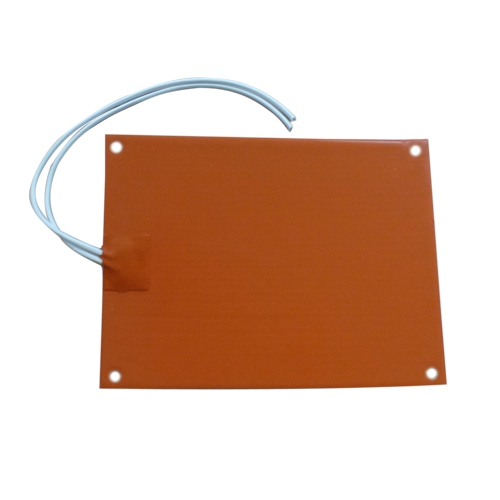

perforated silicone heater

Product introduction:

our company in the production of silicone heating tablets, quality assurance, can be better used in industrial production, increase customer production profits!

The production of silicone heating is to use high temperature resistant, high thermal conductivity, insulation performance strong, good silicone rubber and also high temperature resistant fiber reinforced materials as raw materials,By two sheets of glass fiber cloth and the double piece of silica gel also silica glass fiber cloth.Because it is thin sheet products (standard thickness of 1.5 mm) it has good flexibility, can be completely close contact with heater.

The silicone heating piece of raw materials

1.silicone rubber (high temperature resistance, high thermal conductivity, good insulation properties, strength)
2.fiber reinforced materials (high temperature)
3.set of soft metal heating membrane circuit electric heating membrane element

1, insulation materials the highest heat resistance: 250 ℃
2, the highest use temperature: 250 ℃
3. The best temperature: 150 ℃
4, insulation resistance: Ω 5 M or higher
5, compression strength: 1500 v / 5 s
6. Voltage: 220 v / 380 v
7, power deviation: plus or minus 8%

The silicone heating piece of main use:
Health care, instruments and meters mechanical equipment such as tubular, planar antifreeze, heat preservation, heating, etc.
