Kapton Electric Heating Element For 3D Printer,Oil Drum,Medical Device,Etc

Features:

1) Heating fast and long time using

2) Flexible and customization, thinness and lightness

3) Waterproof and non-toxic, odourless

4) Easy to use and operate

5) High thermal conversion efficiency

6) Good insulation property

7) Can prefect contact with the heated

8) Can be stick to the heated (have adhesive)

Dual Voltage, Zoning and Three Phase

Due to the flexibility in circuit design of silicone rubber heaters, multiple heating circuits can be designed to accommodate dual voltage and multiple zones. On dual voltage heaters, three leads, including a common in a different color, are provided for wiring the heater in series for the higher voltage and parallel for the lower voltage. 120/240 Vac or 240/480 Vac can be achieved. Multiple circuit areas can be zoned to achieve different heating effects. Three-phase circuits also can be designed for high current applications.

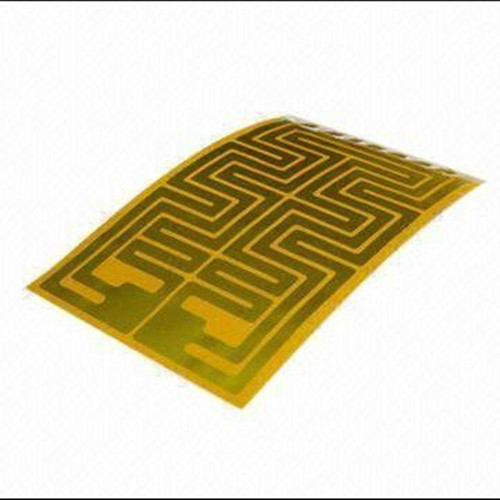

Etched Foil Polyimide Heaters

The etched element provides superior heat transfer and exceptionally uniform heat output, which results in a faster warm-up cycle and longer life. The heaters operate in ambient temperatures from -80°F to 500°F.

Why Choose Polyimide/Kapton:

1) Heating for very small sizes
2) Very thin
3) High dielectric strength
4) Flexible circuit design
5) Superior tensile strength and tear resistance
6) Resistant to radiation and most solvents
7) Better choice far high watt density heaters (those over 5W/in2), also used for watt densities of 5 or less
8) Excellent choice for heaters that require multi-zone wattages
