3D printer heater bed

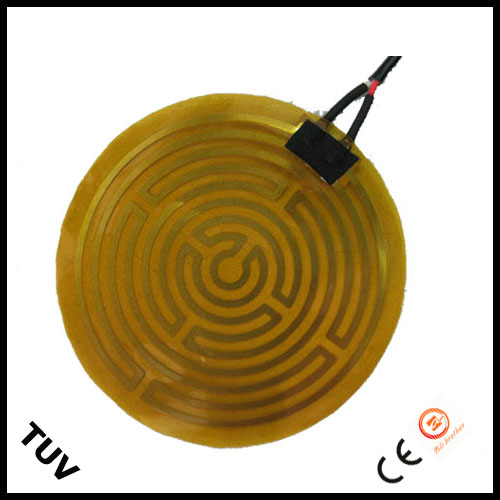

3D Printer Heater/Polyimide Heater

sort:XD-F-9
This product has been viewed
Sort:XD-F-9
Welcome to call us
alirubber.com@163.com
Product Details
 Polyimide is an organic polymer with very high dielectric
capability, thin profileand low thermal mass, while providing superior
resistance to most solvents, oils,and radiation. In connection with
these features, kapton heaters are very ideal for applications:
● With space and weight limitation
● The heater will be exposed to chemical or oil
● In vacuum environments due to low outgassing
● Fast and precise heating

Complicated heating profiles(e.g. Multi-zone heater) for lasers and
precision instruments can be easily realized.




Being transparent, Kapto film also allows easy visual inspection on the internal strutures. Pressure-sensitive adhesive(3M) backing surface is standard, but special adhesive or mounting holes can be customized
pre customer requirement. Special cord and plug sets available.


Specification of Polyimide Heater



● Working voltage: 0-400V

● Working temperature: -200C-180C

● Watt density: <7.8W/cm2

● Mounting: 3M

● Max size: 500*600mm

● Bending radius: >0.8mm

● Exit: teflon or silicone insulated leads





Application of Kapton Heaters

● Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.

● Stabilize optoelectronic components

● Test or simulate integrated circuits

● Enable cold weather operation of outdoor electronics such as laptop, ATM, LCD’s

● Protect aircraft electronic and mechanical devices in cold weather/area
