3D printer heater bed

Wholesale12v 3D Printer Heated Bed 300mmx300mm Silicone Heated Bed

sort:XD-H-02
This product has been viewed
Sort:XD-H-02
Welcome to call us
alirubber.com@163.com
Product Details

Wholesale12v 3D Printer Heated Bed 300mmx300mm Silicone Heated Bed

Specifications:



Temperature Rating



Maximum operating temperature 220-250 °C


Size/Shape Limitations


Maximum width 120CM, no maximum length


Thickness


Standard thickness 1.5mm


Voltage


Any AC or DC


Wattage


 Customer specified (Normal maximum of 5 Watts per square inch)


Power Lead wires


Silicone Rubber or Teflon insulated stranded wire


Attachment


Hooks, Lacing Eyelets, or Velcro® Closure.


Before purchasing, Please confirm the size first(Iength*wide*thickness)


Features:



(1) Heating fast and long time using

(2) Flexible and customization, thinness and lightness

(3) Waterproof and non-toxic, odourless

(4) Easy to use and operate

(5) High thermal conversion efficiency

(6) Good insulation property

(7) Can prefect contact with the heated

(8) Can be stick to the heated (have adhesive)

Applications:

  • Freeze protection and condensation prevention for many types of instrumentation and equipment.
  • Medical equipment such as blood analyzers and test tube heaters.
  • Computer peripherals such as laser printers.
  • Curing of plastic laminates.
  • Photo processing equipment.
  • Semiconductor processing equipment.
  • Thermal transfer equipment
  • Drums and other vessels and viscosity control and asphalt storage.

Dual Voltage, Zoning and Three Phase       QQ20131217170642                                                                  Due to the flexibility in circuit design of silicone rubber heaters, multiple heating circuits can be designed to accommodate dual voltage and multiple zones. On dual volt heaters, three leads, including a common in a different color, are provided for wiring the heater in series for the higher voltage and parallel for the lower voltage. 120/240 Vac or 240/480 Vac can be achieved. Multiple circuit areas can be zoned to achieve different heating effects. Three-phase circuits can also be designed for high current applications.

Waterproof Silicone Heater ( Passed IP68)

silicone heater (2).jpgP1080452.JPG

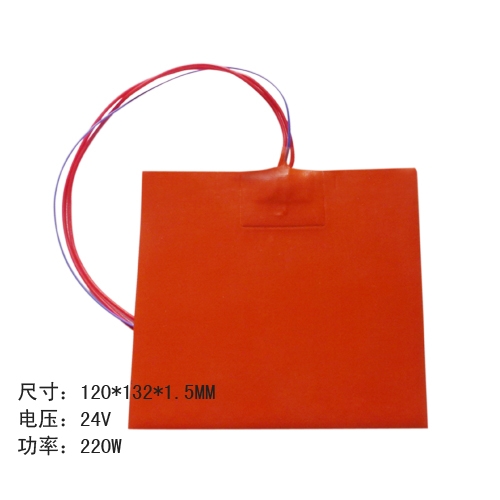

Silicone heater bed for 3d printer:

printer heater.jpg


Heater with adhesive:

silicone heater.jpg

Heater with 100k thermistor

100K thermistor


Silicone Drum Heater

829716301_088


Production Produce:



1.Array nickle alloy wires



2.Testing Resistance



3.Hot-pressing





4.Soldering





5.Packaging





CE Certifcation:

 scan0002
